Stainless Steel Wire rope Mesh Used For Stair Balustrade

Name: Stainless Steel Wire rope Mesh Used For Stair Balustrade
Brand: huihaokasite
Price: 45 USD

China Stainless Steel Wire rope Mesh Used For Stair Balustrade wholesale

Brand Name : huihaokasite

Model Number : ferrule flexible rope mesh

Certification : ISO9001-2015

Place of Origin : China

MOQ : 30 square meters

Payment Terms : T/T,L/C

Supply Ability : 1000 square meters per 28 days

Delivery Time : within 8 days

Packaging Details : packed in carton box or wooden box. Or can be customized

Price : USD45/M2

Material : stainless steel 316. 304

cable standard : 7x7(1.5mm, 2mm, 2.5mm), 7x19(3mm, 4mm)

aperture : 25mmx43mm to 200mmx346mm

degree : 60

width : 0.5-2meter

length : 30 meters

Contact Now

Stainless Steel Wire rope Mesh Used For Stair Balustrade

1.Ferrule Flexible Stainless Steel cable Mesh With Frame Used For Stair Balustrade

Cable Mesh Material: 304,316 Wire Diameter: 1.2 mm
Cable Wire Construction: 7*7
Mesh Type: Ferruled Mesh Orientation: Vertical , Horizontal
Cable Mesh Angel: 60 degree in shape diamond
Flow Of Production: 100% Hand Made
Mesh Finished: Stainless Steel Polished Usage: Staircases , Balustrades
Supply Ability: 300 Square Meter/Square Meters per Week stainless steel security balustrade infill panels

Type	Breaking load ( KN )	Wire Dia.(MM)	Mesh Opening (MM)
Type	Breaking load ( KN )	Wire Dia.(MM)	Mesh Opening (MM)
7 X 19	7.38	3.2	120x120,102x102, 90x90,76x76,51x51
7 x 19	4.18	2.4	102x102, 90x90,76x76,51x51
7 x 7	3.17	2.0	76x76,60x60,51x51,38x38
7 x 7	2.17	1.6	76x76,51x51,38x38, 30x30,25.4x25.4
7 x 7	1.22	1.2	51x51, 38x38,30x30 25.4x25.4,20x20

2.Ferrule Flexible Stainless Steel cable Mesh With Frame services

1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.
7.ISO9001-2008 Quality certification management system
8. 24 hours Hot line/whatsapp 0086-13363891298, wechat :535876736

3.Accessories of Ferrule Flexible Stainless Steel cable Mesh With Frame

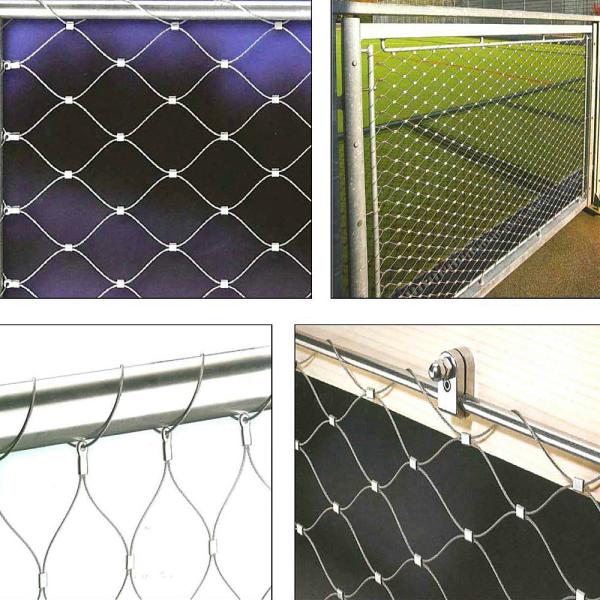

Stainless Steel Wire rope Mesh Used For Stair Balustrade

4.Frame type of Ferrule Flexible Stainless Steel cable Mesh With Frame
